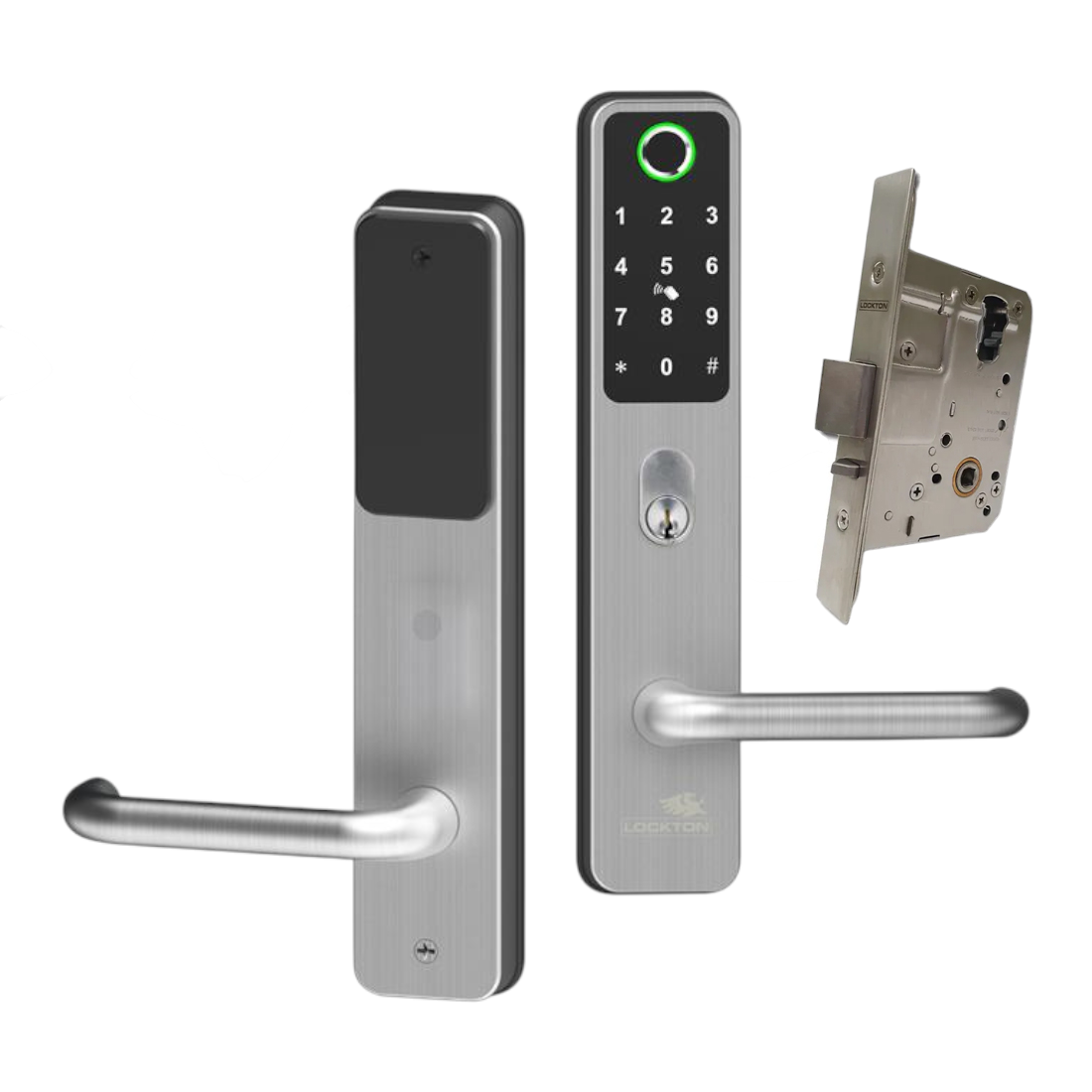

LOCKTON CADELL52 smart lever lock in satin stainless steel, outside and inside handles with the 60mm mortice lock

1/8

LOCKTON E-Series CADELL52 Smart Lever Lock Kit – 60mm Backset

LOCKTON · E-Series

LOCKTON E-Series CADELL52 Smart Lever Lock Kit – 60mm Backset

$738.00

Taxes included. Shipping calculated at checkout.

A smart lever lock for homes and businesses that fits over an existing Australian mortice lock installation. Open it with a fingerprint, PIN code, RFID tag, the free phone app or the key, and manage who gets in from your phone.

Free shipping over $150 Dispatched from our Beenleigh store. Shipping and delivery times

Advice from a Master Locksmith (07) 3382 0755 · Mon–Fri 8:30am–4:30pm

Need to return something? See what can be returned and how. Returns policy

CADELL52 brochureLOCKTON · PDF · 4.5 MB
Declaration of compliance (satin stainless)LOCKTON · PDF · 3.6 MB

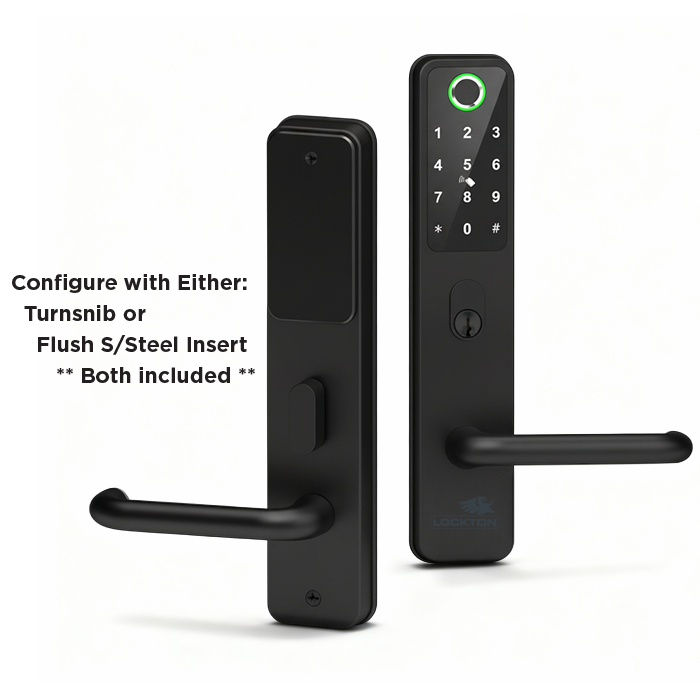

Declaration of compliance (matte black)LOCKTON · PDF · 3.6 MB
Fitting templateLOCKTON · PDF · 0.7 MB
Instructions and app set-upLOCKTON · PDF · 4.3 MB

Specifications

Lock

Users: Unlimited app users and PIN codes (4 to 9 digits), up to 1,000 RFID tags, up to 100 fingerprints
Key override: 6-pin C4 rekeyable oval cylinder, 2 keys

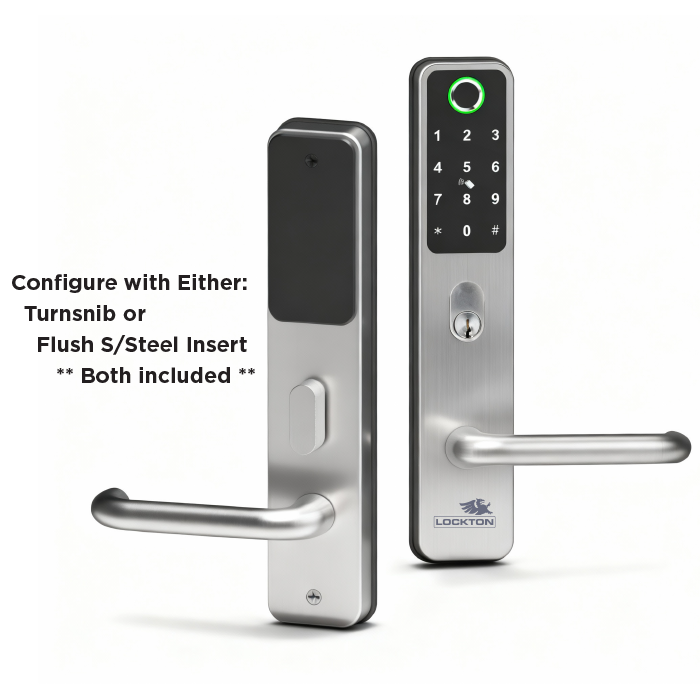

Inside handle: Passage as supplied; turn snib or flush stainless insert in the box
Mortice lock: SG-ML60, 60mm backset

Size and fit

Door: Timber, 32 to 60mm thick, 20 to 120kg
Handle (H × W × D): 263 × 52 × 22mm, 58mm projection
Faceplate / strike: 175 × 25mm / 70 × 46mm
Material: Solid stainless steel handles, 2mm pressed 304 stainless plates
Batteries: 4 × AAA alkaline (supplied), about 1 year at 10 to 20 uses a day

Ratings and warranty

Rated: IP66; fire tested up to 2 hours; SL8 (with cylinder); D8, 500,000 cycles; AS 1428.1-2009
Tested to: Relevant clauses of AS 4145.2 and AS 1905.1:2015, by an accredited third-party laboratory
Warranty: Manufacturer's warranty: 10 years mechanical, 3 years electronic

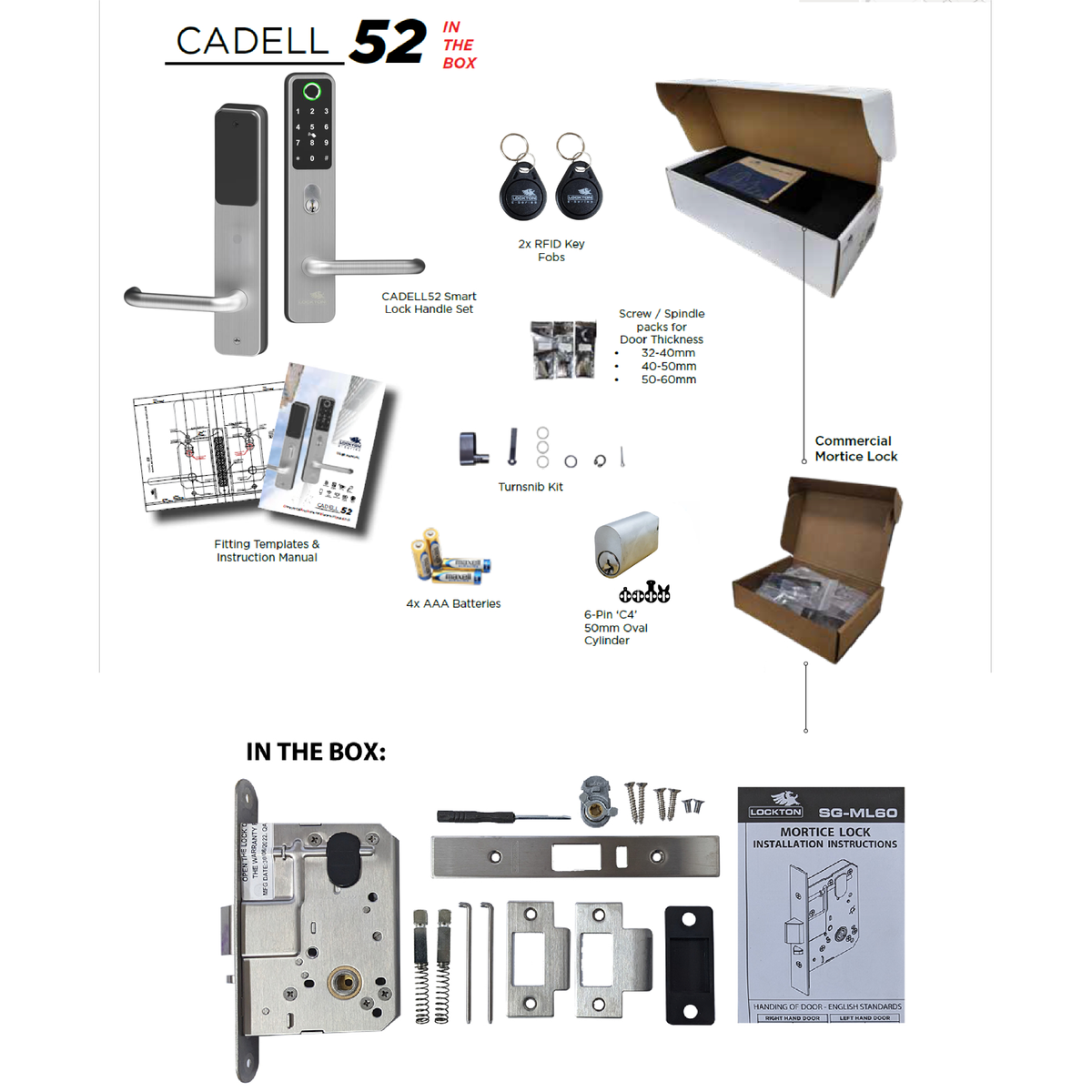

In the box

Contents: Handle set, SG-ML60 mortice lock, 50mm oval cylinder with 2 keys, 2 RFID fobs, 3 screw and spindle packs, turn snib kit, 4 AAA batteries, fitting template, instructions

Features

Five ways in

Fingerprint, PIN code, RFID tag, the phone app over Bluetooth, or the key.

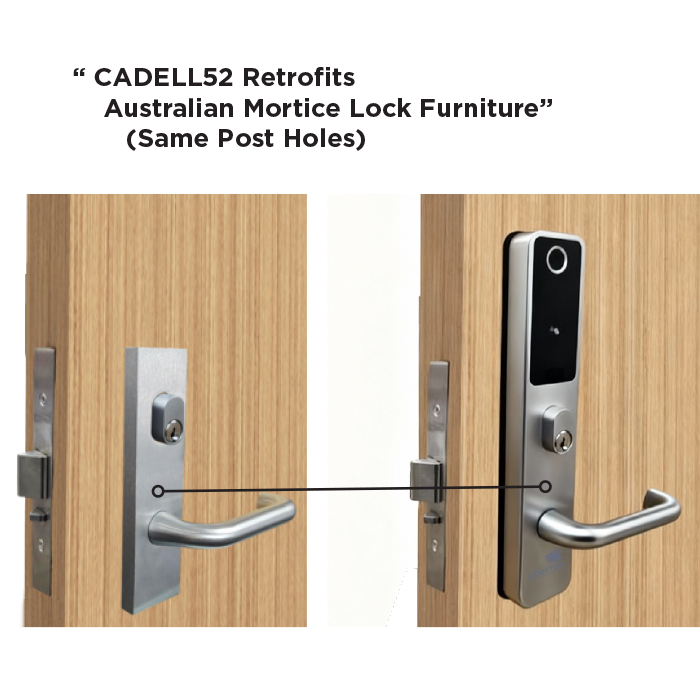

Fits your old mortice lock

Goes over an existing Australian mortice lock install: the fixing posts sit where standard mortice furniture posts do.
IP66 weather rated

Both the outside and inside handles are IP66 rated, so it suits outside doors.
Fire tested to 2 hours

Tested by an accredited third-party laboratory: up to 2 hours (Firecore and E-Core, Australia; Hallmark, New Zealand).
SL8 and D8 rated

Passed the relevant clauses of AS 4145.2: SL8 physical security (with cylinder) and D8 durability, 500,000 cycles.
Free app, no extras

Add users, send temporary codes and open the lock from the LOCKTON E-Series app. No paid features, no ads.

Guides & videos

Install guides, instructions and set-up videos.

Guides & videos

Install guides, instructions and set-up videos.

CADELL52 brochureLOCKTON · PDF · 4.5 MB
Declaration of compliance (satin stainless)LOCKTON · PDF · 3.6 MB
Declaration of compliance (matte black)LOCKTON · PDF · 3.6 MB
Fitting templateLOCKTON · PDF · 0.7 MB
Instructions and app set-upLOCKTON · PDF · 4.3 MB

FAQs

Will it fit my door?

It suits timber doors 32 to 60mm thick and 20 to 120kg. It goes over most existing Australian mortice lock installs, because its fixing posts sit in the same place as standard mortice furniture, and it can replace most knobsets, leversets and deadbolts. No mortice lock yet? We can fit one for you: call us for a quote. Not sure? Send us a photo of your door and lock and we'll check.

Do I need Wi-Fi or a hub?

No. The app talks to the lock over Bluetooth when you're at the door. To open it or manage users from anywhere, add an E-Series gateway (Wi-Fi, Ethernet or 4G), sold separately.

Is the app free?

Yes. The LOCKTON E-Series app for iPhone and Android has no paid features and no ads. You can also sign in with an existing TTLock account.

How many people can use it?

Unlimited app users and PIN codes, up to 1,000 RFID tags and up to 100 fingerprints. PIN codes are 4 to 9 digits, and you can send temporary codes from the app.

What happens when the batteries go flat?

The four AAA batteries last about a year at 10 to 20 uses a day. The key still opens the lock when the batteries are flat.

Can it use the same key as my other locks?

It has a 6-pin C4 oval cylinder. We can key it to match your other locks, as long as your key suits that cylinder. If your keys are on a Blacks restricted key system, we can add it to that system too. Give us a call.

Which way do the handles point?

Both handles come upright and can be set to suit a left or right hand door when it's fitted. The instructions show how.

Can it go on a fire door?

It has been fire tested up to 2 hours. On a fire door, the expanding fire material must go on the inner plates of both handles as the instructions show. Talk to us first if the door is part of a fire-rated system.

Can you fit it for me?

Yes. The online price is for the lock only, to fit yourself. If you'd like one of our locksmiths to fit it, give us a call for a quote. We can also fit it to a door that doesn't have a mortice lock yet.

What if something goes wrong with it?

It comes with LOCKTON's warranty: 10 years mechanical and 3 years electronic. If it develops a fault, contact us and we'll handle the claim for you. The warranty covers manufacturing and mechanical faults, not damage or normal wear.

How long does it take to arrive?

We order it in for you, and it's usually dispatched in 2 to 4 business days.

Can I return it?

Yes, if it's unused and in its original packaging (see our returns policy). Once it has been fitted or keyed it can't be returned.

Can I get extra fobs or a gateway?

Yes. We can order extra RFID fobs, E-Series gateways for remote access, and retrofit plates that cover old lock holes. Give us a call.
