Details
- Type
- Square end compression latch
- Finishes
- Black, white, bright chrome, satin chrome
- Cut-out
- 73 × 30 mm, 5 mm corner radius
- Barrel
- Sold less barrel
- Key profiles
- CX7, LF31R, LF37 and LF24 (standard LF exchange barrel)

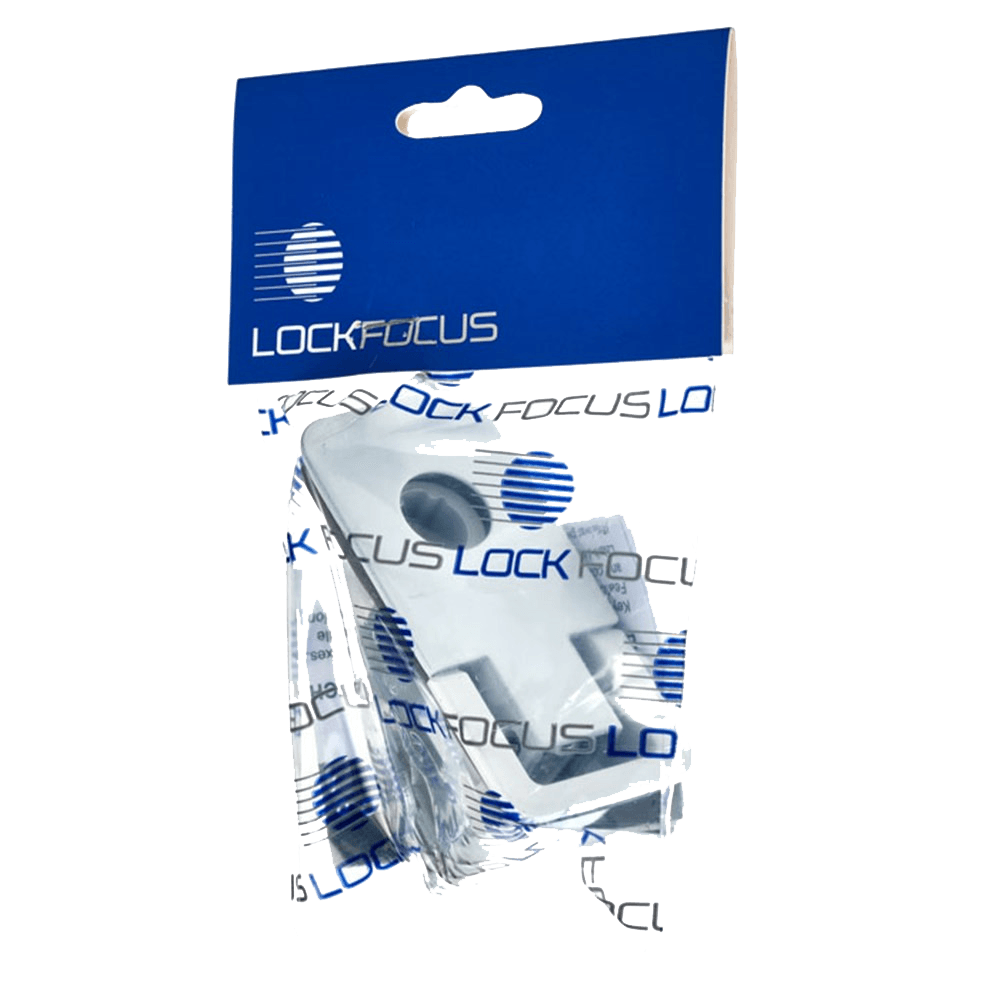

Lock Focus Compression Latch – Less Barrel
White
$32.25
Skip to product information
Lock Focus · Compression
Lock Focus Compression Latch – Less Barrel
$32.25
Taxes included.
Shipping calculated at checkout.
Replacement compression latch for access doors. This accommodates the Lock Focus 'RV Single Key Range barrel eliminating the need to have a different key for every lock.
Free shipping over $150 Dispatched from our Beenleigh store. Shipping and delivery times
Advice from a Master Locksmith (07) 3382 0755 · Mon–Fri 8:30am–4:30pm
Need to return something? See what can be returned and how. Returns policy
- Compression Latch installation instructionsLock Focus · PDF · 196 KB
- RV Single Key Range brochureLock Focus · PDF · 6.7 MB
Specifications
Specifications
Features
Features
For access doors
Fits in place of the compression latch on your access doors.
Caravans, utes and toolboxes
At home on RVs, ute canopies, toolboxes, camper trailers and tradie trailers.
Takes the RV Single Key barrel
Made for the Lock Focus RV Single Key Range barrel, so you no longer need a different key for every lock.
Four finishes
Choose black or white powder coat, bright chrome or satin chrome.
Guides & videos
Install guides, instructions and set-up videos.
Guides & videos
Install guides, instructions and set-up videos.
- Compression Latch installation instructionsLock Focus · PDF · 196 KB
- RV Single Key Range brochureLock Focus · PDF · 6.7 MB
FAQs
FAQs
How do I fit the barrel?
Insert the red exchange key into the barrel and make sure the end retainer is fully retracted. Fit the steel collar cam over the barrel so it sits flush against the barrel head. Using the red exchange key, insert the barrel into the latch; it only goes in one way. Hold the barrel in with your thumb and remove the exchange key, press down on the barrel head to check it is fully in, then use your key to check the barrel turns 180 degrees.
How do I change the barrel later?
Unlock the latch with your key and lift the latch to expose the barrel head. Insert the red exchange key and, keeping the key in the barrel, remove the barrel from the housing. Keep the steel cam collar for the replacement barrel, then fit the new barrel the same way as the first.
Does it come with a barrel?
Only the Boot Door Handle and the T Handle for Windsor Rapid come with a barrel. The other parts are sold without one and take a Lock Focus barrel, like the ones in our Barrel Kit.
Will Lock Focus barrels fit my caravan's locks?
Generally, if your caravan uses Camec locks, Lock Focus barrels will fit. They don't suit Chicago barrels on compression locks, T handles and the like. For other brands, check with your caravan's manufacturer.
Can all my caravan locks use one key?
Yes. The Barrel Kit comes in kits of 2, 4, 6, 8, 12 or 15 barrels keyed alike, so one key opens them all.
What are the red keys for?
The red exchange keys come in the box with barrel kits of 2 or more. They're only for fitting and removing barrels, not for everyday locking.
Will it fit my caravan?
Check “Suits” and the cut-out size under Specifications, and measure the part you're replacing. If you're not sure, give us a call.
